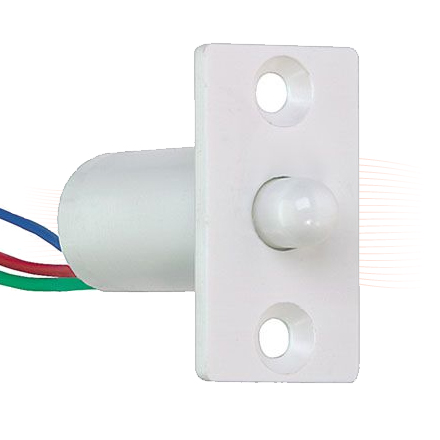

EFFEFF 10415 pin contact 2,0A

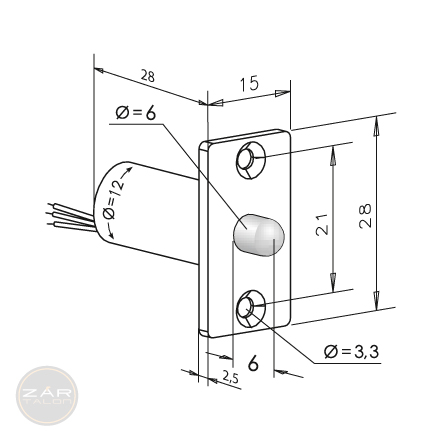

EFFEFF 10415 pin contact 2,0A EFFEFF 10415 pin contact 2,0A dimensional drawing

Effeff 10415--------00

Effeff

Door contacts can be used for monitoring the status of doors and windows. Door contacts are usually installed into the door or window frame. When closing the door or window, it actuates the door contact mechanically and the signal can be evaluated with the help of a monitoring system.

Electromechanical contacts such as conical, pin and micro contacts are microswitches operated by a click switch movement. This ensures complete contact reliability.

Place of origin Germany
Brand EFFEFF

Attributes:

10415--------00 data

Height (y)28 mm
Width (x)15 mm
Depth (z)28 mm
Net weight0.020 kg
Contact typechangeover
Response path2 mm
Voltage25V AC/DC
Warranty1 year

The table shows data of the product.
