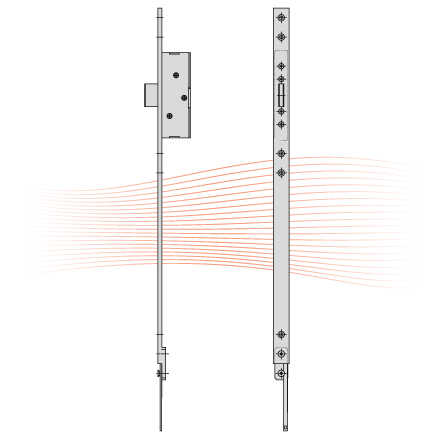

EFFEFF 319/519/819 extension, +1 retesz, 550

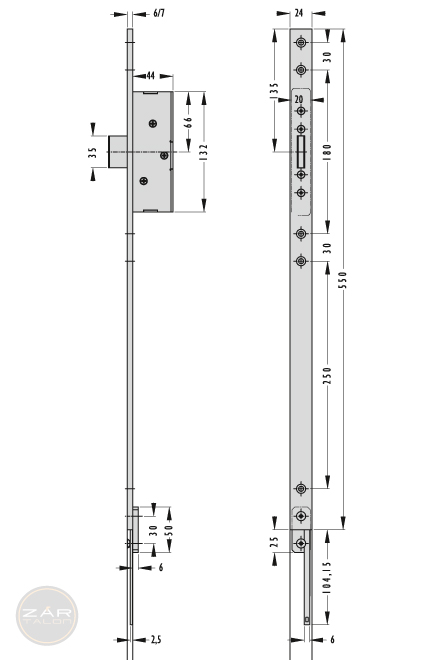

EFFEFF 319/519/819 extension, +1 retesz, 550 EFFEFF 319/519/819 extension, +1 retesz, 550 dimensional drawing

Effeff 819ZBV055----00

Effeff

The multipoint mechanical, electromechanical and electric motor mortise locks 319/519/819 have 3 locking points. These solutions are usable up to door height of 2.15 meters.

If the door is higher, these additional (4th) bolts make the mortise locks usable.
The following extensions are available:
- 550 mm from ca. 2.45 m door height

This way secure locking can be extended to high doors too, to there, where until now, the parts lying higher were weak on the security side.

Place of origin Germany
Brand EFFEFF
