EFFEFF 119E.51 electric strike 12V DC eE universal ProFix 1

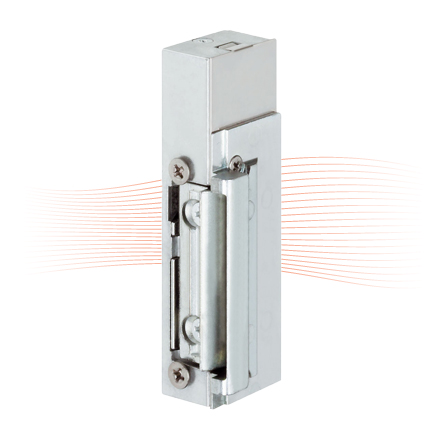

effeff 119E.51 electric strike
Effeff
Universal narrow desgin electric strike with rounded (radius) and adjustable latch (FF, FaFix).
Fail locked operation.
The door can only be opened while a contact is made. In alternating current operation, a humming noise is audible. In direct current operation, there is no noise. When mounting with a throw-open spring or throw-open bolt, the door is opened visibly after a contact is made.
ProFix 1 version.
Slim lock case (16.5 mm width).
A range of different slim striking plates are available.
Can be used with FaFix 1 striking plates.
DIN right and left installation thanks to 180° rotation.
Diode (05)
Mechanical unlocking (E)
Attributes:
Select all
Compare
Add to comparison
net:
25 582.68
25 582.68
gross price:
32 490 Ft
32 490 Ft
item no.: P0016576
UoM: pc
Not available
manufacturer's item no.: 119E.51-----E31
Height (y) | Width (x) | Depth (z) | Direction | Voltage code | Voltage | Break-in resistance |
|---|---|---|---|---|---|---|
| 90 | 18 | 28 | universal | E3 | 12V DC eE | 3000 |
Add to comparison
net:
25 582.68
25 582.68
gross price:
32 490 Ft
32 490 Ft
item no.: P0016577
UoM: pc
Not available
manufacturer's item no.: 119E.51-----F31
| Height (y) | Width (x) | Depth (z) | Direction | Voltage code | Voltage | Break-in resistance |
|---|---|---|---|---|---|---|
| 90 | 18 | 28 | universal | F3 | 24V DC eE | 3000 |
Clicking on the product picture takes you to a detailed product description.
