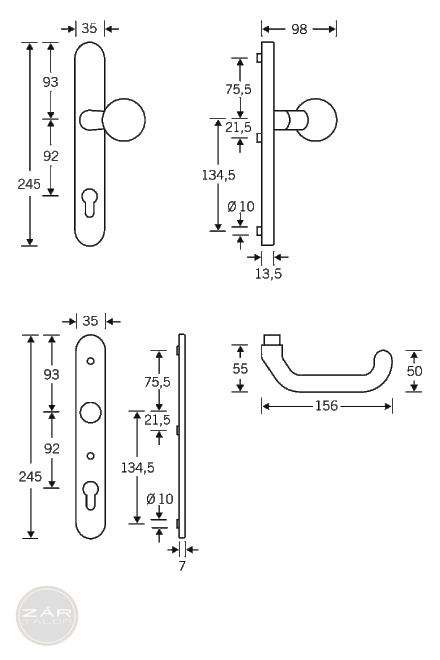

Knob-handle security fitting for narrow profile doors.
For short depth mortise lock series 309X, 329X, 409X, 509X, 509E, 519, 529X and 319.
Usable with Euro profile cylinder.

Aluminium and stainless steel version.
92 mm distance (D).
For 30-45 mm backset (B).
DO 20.3.02 DIN EN 179.
With extraction protected cylinder cutout.
9 mm, steel follower.

Handle and knob light alloy, anodised.
The outer shield can be fixed from the inside with M6 screws.
Screw bushings with drilling protection.

If used with short backset series 509X and 529X, it can only be fixed at 2 points.

Compatible spindles and fastening screws are to be ordered separately. Please see the accessories.
