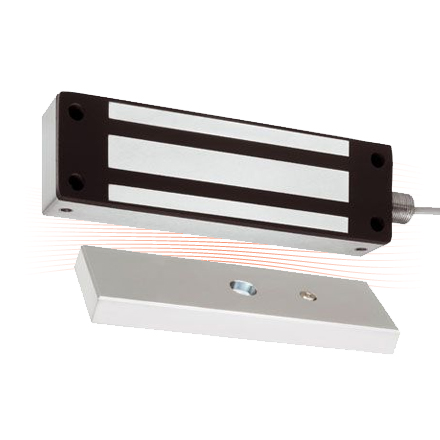

EFFEFF MAGG06500 electric holding magnet, water resistant 12/24V DC, 6500N stainless, surface mounting
Effeff MAGG06500STS--D electric holding magnet
Effeff
Gate magnets have a very high holding power and are suitable for outdoor area. They are especially used in bigger doors and gates.
MAG 6500 flat electric magnets are most sutiable for locking doors and gates outdoors.
Suitable for outdoor use, water resistant. IP 65.
Surface mounting version.
With counter plate.
6500N - 663kg holding power.
Fail unlocked operation. Locked under voltage, opens without it.
Attributes:
MAGG06500STS--D data
| Height (y) | 220 mm |
| Width (x) | 68 mm |
| Depth (z) | 41 mm |
| Net weight | 3.000 kg |
| Installation | surface mount |
| Cable length | 900 mm |
| Colour | silver |
| Surface | stainless steel |
| Hall sensor | yes |
| Voltage | 12/24V DC |
| Nominal holding force | 6500 N |
| DC current consumption stab 12V | 500 mA |
| DC current consumption stab 24V | 250 mA |
| Warranty | 3 years |
The table shows data of the product.
