EFFEFF 138WR water resistant electric strike 24V DC
Effeff 138WR-------F91
Effeff
Water resistant compact electric strikes with rounded latch.
Fail unlocked operation.
The electric strike is locked for as long as the power is on. If the power is switched off or if there is a power cut, the electric strike latch can be moved and the door can be opened.
Suitable for outdoor use (e.g. in garden gates) thanks to water resistant construction (wd).

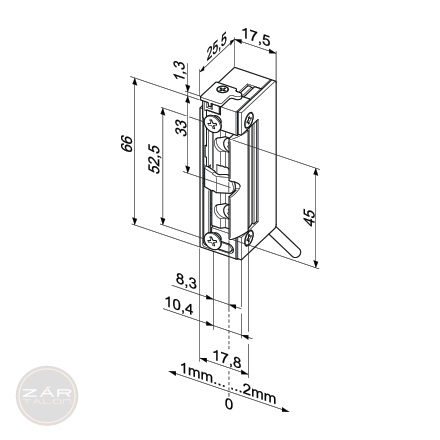

Miniature size lock case (66 x 17.5 x 25.5 mm).
Rounded (radius) latch, FaFix 3 mm adjustability.
Symmetrical structure, 30 cm cable.
IP 54 protection, bipolar diode.
Attributes:
138WR-------F91 data
| Height (y) | 67.3 mm |
| Width (x) | 17.5 mm |
| Depth (z) | 25.5 mm |
| Direction | universal |
| Net weight | 0.25 kg |
| Installation | vertical & horizontal |
| Adjustable latch, FaFix (FF) | yes |
| Monitoring contact (RR) | yes |
| Diode (05) | yes |
| Voltage code | F9 |
| Voltage | 24V DC |
| Rated resistance | 160 Ω |
| Break-in resistance | 3750 N |
| DC current consumption stab 24V | 150 mA |
| DC max. latch preload stab 24V | 30 |
| Warranty | 5 years |
The table shows data of the product.
