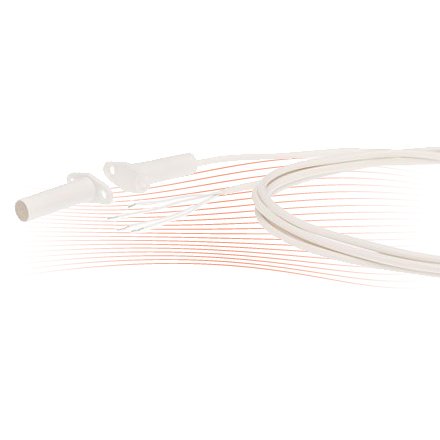

EFFEFF 10382B-6 flush mounting flange reed contact, no
Effeff 10382B-6-----00
Effeff
Flush mounting magnetic contacts for windows and doors.
In the case of steel profiles (magnetic material), only block reed contact model 10365 and assembly base 10366 for surface fitting are used. The assembly base and supports make it easier to fit as planned.
Max. contact rating 200V DC / 500 mA / 10W.
VdS class B, G104508. VdS class B magnetic contacts feature bridging protection.
Max. 5-15 mm sensing distance.
Closer.

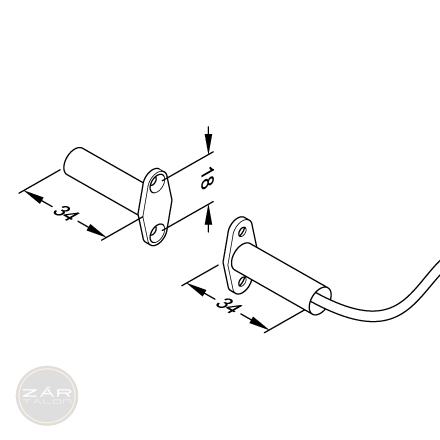

Flange thickness: 2 mm
Flange height: 26 mm
Flange widht: 12 mm
