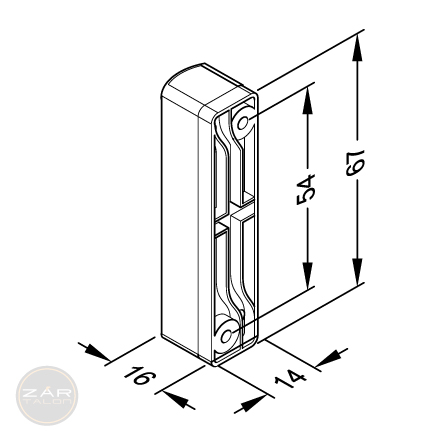

Surface mounting magnetic contacts for windows and doors.

Connecting the contacts with cables is ensured by the cut & clamp technology facilitating an easy-assembling. The wires of the cable are placed in the guide, thereafter the contact part is put on, then it is pressed together by hand. Finally, the lid of the housing is placed on the lower part.
All contacts are designed so that a series connection without distributor is possible.

Max. switching current NCC / NCO: 250 / 500 mA.
VdS class C magnetic contacts feature bridging and external magnet protection.
Max. 10-25 mm sensing distance.
Closer.

Details of connection: 4 mm x 0,14 mm² flexible - 7 mm x 0,16 mm²
The sensing distance depends on the installation and the material of the subconstruction too.
