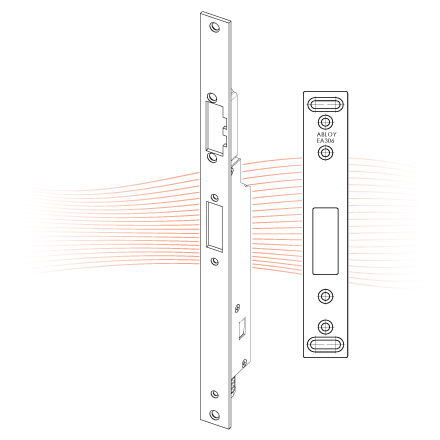

MEDIATOR 65M linear electric strikes for multi point MEDIATOR locks with flat striking plate.

The MEDIATOR® linear electric strike has been especially developed for this lock solution. Manufactured to effeff's established high quality standards, it is available with fix adjustment. Different spacer plates to align the rebate clearance are available with the striking plate used. A sliding piece is available to bridge notches and unevenness in the profile.The MEDIATOR® linear electric strike is motor-driven and fulfils all the requirements for use in busy apartment doors.

The entrance door is constantly locked, day and night. Exiting the house through the main door is possible at any time, even if the door is permanently locked. If visitors come late in the evening or early in the morning, the locked door can also be opened from the apartment through the doorphone.

12V DC.
Unlocking time 3 seconds. Fix adjustability (3 mm).
Control voltage 5-48V AC/DC.
Signal contact, door locked/closed: max. 30V DC, 500 mA
Signal contact, door open/passable: max. 30V DC, 500 mA.
Face and striking plate distance: min. 2 mm, max. 5.5 mm
It can be kept open permanently.
DIN EN 179 (0432-CPR-00007-11) and DIN EN 1125 (0432-CPR-00007-12) approvals.
VdS G 109 032 lock monitoring (class C), VdS G 109 001 electromechanical actuator (class C), VdS M 109 314 mechanical locking (class A).

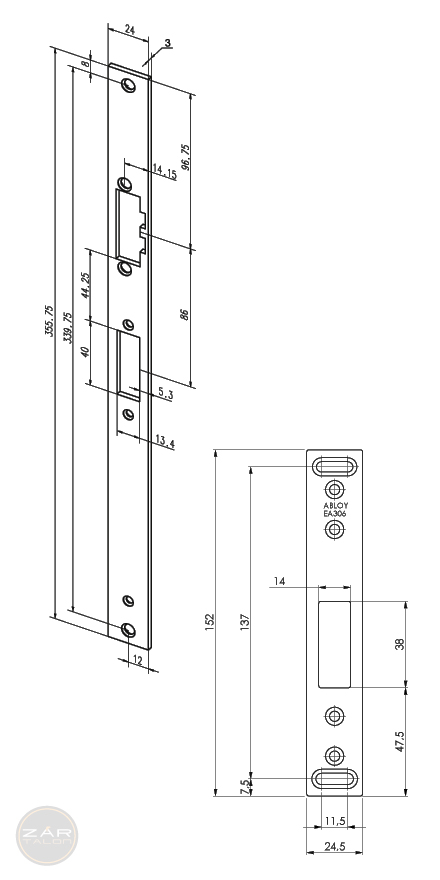

Striking plate size 355.75x24x3 mm.
