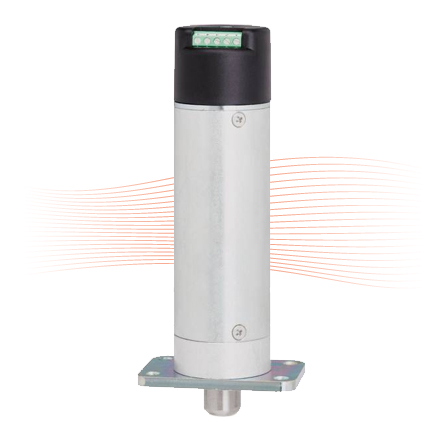

effeff 1841 electromechanical electric bolt
Effeff
These door bolts are designed for interior use and should be fitted vertically at the top of the door frame.
Locking is performed by a13 mm diameter extension locking bolt.
Fail locked use, 12 or 24V DC operation; without counterpart.
Suitable for revolving and swing doors.
Additional locking to main lock.
Continuous duty (100% ED).
General techincal data

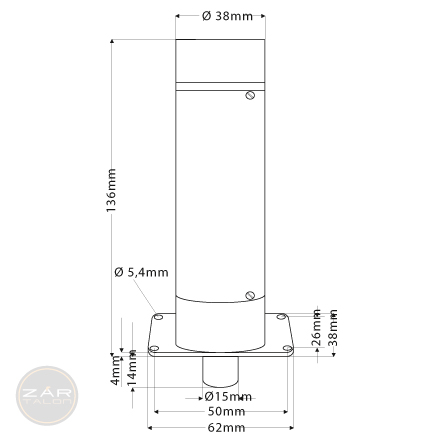

Height (y) | 136 mm |
Width (x) | 38 mm |
Depth (z) | 38 mm |
Net weight | 0.880 kg |
Installation | vertical |
Bolt diameter | 15 mm |
Dead bolt throw | 13 mm |
Fail-locked (1) | yes |
Warranty | 5 years |
The table shows common data of the product group.
