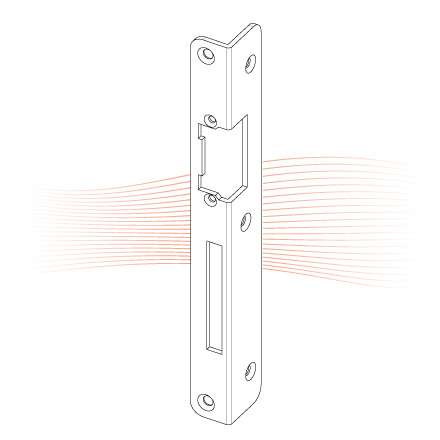

EFFEFF 278 iW3 bracket striking plate left stainless steel

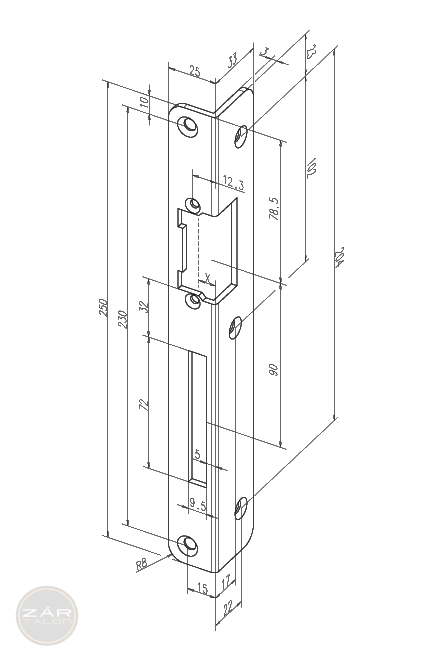

EFFEFF 278 iW3 bracket striking plate left stainless steel EFFEFF 278 iW3 bracket striking plate left stainless steel dimensional drawing

effeff 278 iW3 striking plate

Effeff

Bracket striking plates are mainly used in wooden door frames. Electric strike and dead bolt cutouts of different size and varying position enable a combination with all established mortise locks.

Rounded standard bracket striking plate with latch and dead bolt cutout.
DIN left or right models.
3 mm material thickness.
Additional fixing holes.

Color silver
Place of origin Germany
Brand EFFEFF
