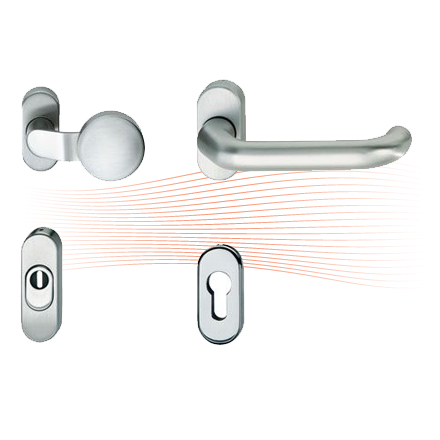

EFFEFF 509ZB02-35 slim security handle and escutcheon, K-H, stainless steel
effeff 509ZB02 security escutcheon
Effeff
Knob-handle security escutcheon for narrow-profile, short depth doors.
For short depth mortise lock series 309X, 329X, 409X, 509X and 529X (EN 179).
Stainless steel version.
30-45 mm backset.
DO 20.3.02 DIN EN 179.
M5x25 fastening screws, rivet nuts.
The inner and outer parts are fixed separately.
Security rosette with core extraction protection.
9 mm follower.
Compatible spindles are to be ordered separately. Please see the accessories.
