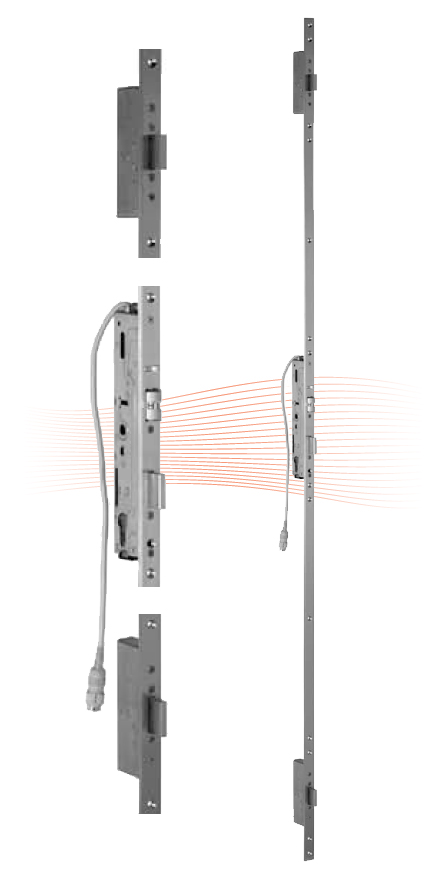

EFFEFF 819-12 electromechanical multi-point mortise lock, 12V 100% ED, 92/35/24, C

Panic function multipoint locking electromechanical mortise locks

Locks with a panic function make it possible to open even deadlocked doors in the escape direction (from the inside out) with only a single hand by a handle or panic rod. Regardless of the electric state of the mortise lock by using the handle or panic rod the latch and deadbolts retract and release.

The main (central) lock of the multipoint locks is based on the single point locking version. As standard two auxiliary bolts ensure higher resistance, so the bolts lock at three points. With most locks a fourth additional bolt can also be attached.
Multi point locks are more secure and usually serve the defense of entrance doors, section perimeter doors and doors of specially protected areas.

Both the escape route (EN 179) and panic exit locks (EN 1125) have a panic function. Regulations regarding panic exits are stricter, panic bars are used here. At these exits, it must be ensured that with minimum effort and without knowing how the emergency function of the lock operates, the door must be openable, an escape opportunity has to be provided. The required opening force can be up to 220N, with 1000N preload on the door.

According to the specifications (EN 179, 1125) only components approved together may be used. Mortise locks will be certified together with fittings, panic rods and striking plates. The requirements are only met if the locks are installed and used esclusively with these components.
